Introduction to Quick Excel Reader

28 Jul 2025

Have been thinking for quite some time to write this utility. I wrote similar utilities like this to parse excel file quickly on every projects I worked on last few years.

I don't know how useful it will be on this AI era, may be just for myself :-)

Overall Arch

Intentionally we published this package as standalone library, so that can be used with any Java/J2EE framework. This library published to maven central so you can easily integrate with any build tools i.e. Maven or Gradle of your choice.

Getting Started

To get started, you’ll need a working Java project. If you want to work with SpringBoot project checkout Spring Initializr. There is sample SpringBoot application in sample folder of the github project, please refer README file.

Quick Excel Reader library in your Java project. Checkout for latest version in Maven Central or mvnrepository.com

<dependency>
    <groupId>com.github.nemo97</groupId>
    <artifactId>quick-excel-reader</artifactId>
    <version>1.0-RC</version>
</dependency>


<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.15.2</version>
</dependency>
<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi-ooxml</artifactId>
    <version>5.2.3</version>
</dependency>



{
  "schemaVersion": "1.0",
  "sheets": [
    {
      "sheetName": "def1", /* excel sheet name, sheet can be any order. Code with match the name before read corresponding sheet   */
      "description": "This is a sample definition file for def1.",
      "fields": [
        {
          "name": "field1", /* Field name, this will key name result map. So make it unique */
          "xlsColumn": "A3", /* Excel column to map. Mandatory on first field. When not provided, it wil assume next cell of same row*/
          "type": "string", /* Type string */
          "validation": { /* for future use */
            "required": true,
            "maxLength": 50,
            "regex": "^[a-zA-Z0-9_]+$"
          },
          "description": "This is a string field."
        },
        {
          "name": "field2",
          "type": "long", /* type is long. when no xlsColumn filed provided, it will assume next cell of same row. For this defination this field will map to B3 */
          "validation": {
            "required": true,
            "range": {
              "min": 1,
              "max": 100
            }
          },
          "description": "This is an integer field."
        },
        {
          "name": "field21",
          "type": "double", /* double type to read as floating point number, map to C3 */
          "validation": {
            "required": true,
            "range": {
              "min": 1,
              "max": 100
            }
          },
          "description": "This is an decimal field."
        },
        {
          "name": "field3",
          "type": "boolean", /* boolean type */
          "validation": {
            "required": true
          },
          "description": "This is a boolean field."
        },
        {
          "name": "field4",
          "type": "table", /* this is special type to read table of data */
          "xlsColumn": "B8-B9", /* xlsColumn range for table, if this is missing has to provide in fields level(both inclusive).For complex type of table when columns have been merged , you have to provide in fields lebel.*/
          "fields": [
            {
              "name": "field4a",
              "type": "long",
              "validation": {
                "required": true
              },
              "description": "This is a long field."
            },
            {
              "name": "field4b",
              "type": "string",
              "validation": {
                "required": true,
                "maxLength": 100
              },
              "description": "This is a string field."
            },
            {
              "name": "field4c",
              "type": "string",
              "validation": {
                "required": true,
                "maxLength": 100
              },
              "description": "This is a string field."
            }
          ]
        }
      ]
    }
  ]
}

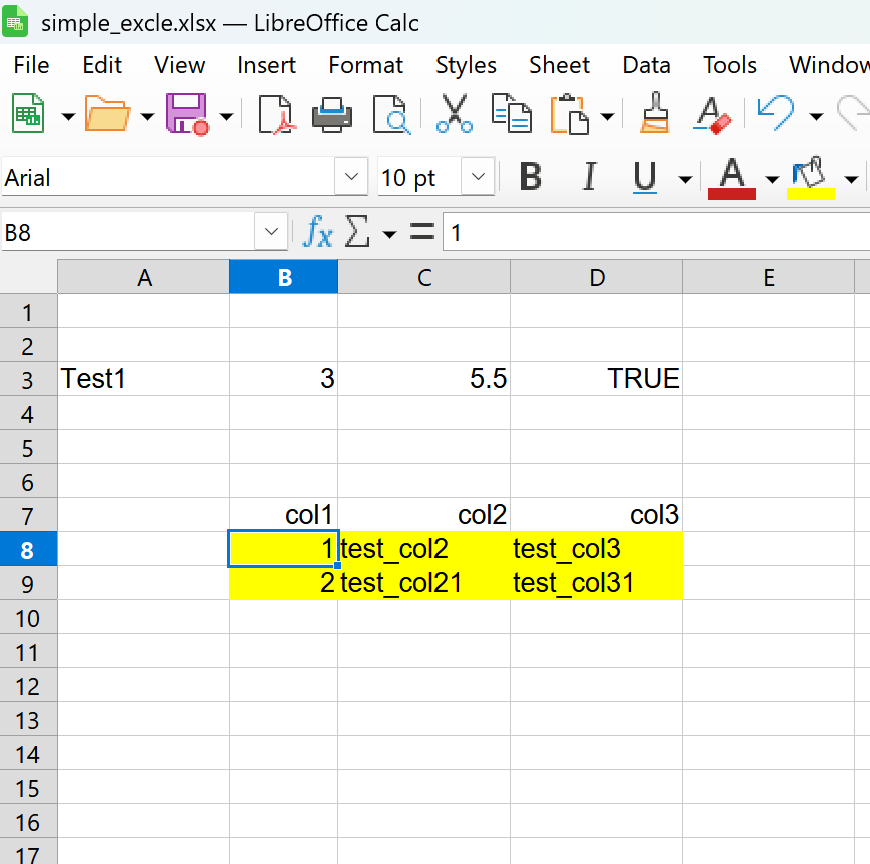

You can use the src\test\QuickExcelReaderTest test class as a reference.

// Copy Excel and JSON files from classpath to temp files
InputStream excelStream = getClass().getResourceAsStream("/simple_excel.xlsx");

Path excelFile = Files.createTempFile("test", ".xlsx");
        Files.copy(excelStream, excelFile, java.nio.file.StandardCopyOption.REPLACE_EXISTING);

InputStream jsonStream = getClass().getResourceAsStream("/def1.json");
Path jsonFile = Files.createTempFile("test", ".json");
        Files.copy(jsonStream, jsonFile, java.nio.file.StandardCopyOption.REPLACE_EXISTING);


QuickExcelReader reader = QuickExcelReader.builder()
        .excelPath(excelFile)
        .jsonPath(jsonFile)
        .build();

ResultExcelData result = reader.read();

// print the result as map
System.out.println("Result: " + result.getDataMap());

Excel Definition Schema

Here is a concise Markdown documentation for the JSON schema in src/main/resources/config_schema.json:

Overview

This schema defines the structure for configuring Excel sheet definitions, including sheets, fields, and validation rules.

Root Object

Property Type Description Required
schemaVersion string Version of the schema Yes
sheets array List of sheet definitions Yes

Sheet Object

Property Type Description Required
sheetName string Name of the sheet Yes
sheetIndex integer Index of the sheet No
description string Description of the sheet No
fields array List of field definitions Yes

Field Object

Property Type Description Required
name string Field name Yes
xlsColumn string Excel column name No
type string Data type: string, double, long, boolean, table Yes
validation object Validation rules (see below) No
description string Field description No
fields array Nested fields (for type table) No

Validation Object

Property Type Description Required
required boolean Whether the field is required No
maxLength integer Maximum length (for strings) No
regex string Regular expression pattern No
range object Numeric range (see below) No

Range Object

Property Type Description Required
min number Minimum value Yes
max number Maximum value Yes

Example

{
  "schemaVersion": "1.0",
  "sheets": [
    {
      "sheetName": "Users",
      "fields": [
        {
          "name": "username",
          "type": "string",
          "validation": {
            "required": true,
            "maxLength": 20
          }
        }
      ]
    }
  ]
}

Notes
